Retractable Welding Hose Reel 65ft. 1/4'' Auto Rewind Oxygen Acetylene Wall

Retractable Welding Hose Reel 65ft. 1/4'' Auto Rewind Oxygen Acetylene Wall

Ürün ayrıntıları:

Place of Origin: China
Marka adı: Goodyear
Sertifika: N/A
Model Number: W8082022

Ödeme & teslimat koşulları:

Minimum Order Quantity: 50
Fiyat: Negotiation
Packaging Details: Color Box 52*23.5*56.5cm G.W: 24.0 kgs Q'TY 20'CY:400pcs
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 40000pcs/months
En iyi fiyat İletişim

Detay Bilgi

Hose Material: 1/4'' Twin Welding Package: 20.7''x9.8''x23'' / 52x23.5x56.5cm
Weight: 61.7lbs / 28kgs Q'TY 20'CY: 390PCS
Inlet Hose Included: 36'' inlet hose assembly as standard Feature: Full flow swivel joint
Vurgulamak:

geri çekilebilir hortum makarası

,

geri çekilebilir su hortum makarası

Ürün Açıklaması

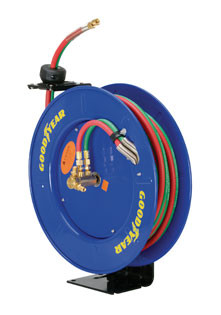

Retractable Welding Hose Reel 65ft. 1/4'' Auto Rewind Oxygen Acetylene Wall



Safety Precautions:



1. Make sure incoming line pressure does not exceed rated operating pressure for your model hose reel.

2. Use proper eye protection when assembling and using the hose reel.

3. Assemble the hose reel on a clean workbench.

4. Use soap and water when checking for leaks.

5. Keep children away from the work area.



Installation of Hose:

  1. Securely stabilize the reel
  2. Facing the swivel fitting side of reel: Turn the drum clockwise, by hand, until the rewind spring is tight, and drum has latched.
  3. As an extra precaution while installing new hose, secure drum in the latched position
  4. Insert end of the hose through guide roller bracket, and feed through the opening in the drum flange.
  5. Use Teflon tape or pipe sealant on hose fitting threads, screw fitting into swivel and tighten.
  6. Attach hose stopper on the other end of hose, near the outlet fitting
  7. Carefully release drum latch, and slowly allow hose to wind onto the reel



Description:



-9/16" X 18 UNF Connector
-1/4" X 50 feet Twin Welding Manual Hose Reel
-Double o-ring seals prevent leaks
-300psi working pressure
-Oxygen(green) Acetylene (red)
-Metal Reel aprox 15" H x 12" overall
-Brand New in Original manufactory package
-Clamp filter in wrench jaws
-Turn filter in a counter clockwise direction to break seal
-Remove filter by hand
-Make sure old gasket is removed with filter
-Install new filter following manufacturer's instruction





Product Description:

  1. Steel construction with corrosion resistant power coating
  2. Full flow solid swivel joint
  3. Multi-position release ratchet, spring fully enclosed
  4. Four direction non-snag rollers reduce hose wear abrasion
  5. Wall, ceiling or floor mount

General Safety Regulations:



♦ Before using this product, carefully check that it will operate properly and perform its intended function

♦ Check for damaged parts and any other conditions that may affect the operation of this product

♦ Replace damaged or worn parts immediately

♦ Do not overreach

♦ Keep proper footing and balance at all times to prevent tripping, falling, back injury, etc.

♦ Do not use the equipment when tired or under the influence of drugs, alcohol, or medication

♦ A moment of inattention while operating this equipment may result in serious personal injury





FAQ:



Q1: What is your MOQ for the hose reel?

A1: 50pcs, but small trial order acceptable.



Q2: What is the delivery time for the hose reel?

A2: Normally 30 days for 1*20'GP container.



Q3: What is the warranty for the hose reel?

A3: One year limited warranty.



Q4: Can you OEM our brand of the hose reel?

A4: Yes, brand customized.
